An undesirable feature of large spaces that are minimalist is echoing and reverberation.

The echo of the sound in the room when talking, watching a movie or listening to music is disturbing and causes stress. Therefore, interior acoustics are as important for the quality of living as its design.
Using the principle of absorption and diffusion (scattering) of sound, we can significantly improve the acoustics of the interior.

ACOUSTIC ABSORBTION COEFFICIENT

GREEN LINE - INSTALLATION ON A PREPARED WOODEN GRID FILLED WITH 50mm MINERAL WOOL
BLUE LINE - INSTALLATION ON A PREPARED WOODEN GRID WITH 50mm AIR GAP
YELLOW LINE - INSTALATION DIRECTLY ON THE WALL

the chart explains and compares which frequencies can be absorbed and how the mounting method affects this


Learn how sound is reflected indoors
At a speed of 340m / s, in a standard room, the sound bounces several tens of times until it audibly fades. The larger the space with hard large areas, the stronger the effect. Even less than a second of unwanted reverberation can be significantly disruptive.

Examples of rooms with different acoustics:

1. Modern minimalist room without sound absorption and sound diffusion
The design of such an interior can be amazing, the feeling of a long stay due to the disturbing effect of the sound "echo" however isn´t

Hard smooth surfaces of walls and objects cause a lot of sound reflections that we do not see but hear as reverberations. This impairs the quality of the communication erexperience from a film or music.


2. Room with installed acoustic lamella wall OakAcoustics
Interior design complemented by modern wooden lamellas with the function of sound absorption and diffusion without disruptive reverberations.



Significant reduction of the undesirable effect of reverberation. The absorption capacity of the acoustic lamella panels absorbs the reflected sound and the "echo" is significantly limited or non-existent. The sound insulation function is an extra benefit

We produce oak wooden lamellas for walls and ceilings in 1000+ variants


The natural oak on the surface provides endless possibilities for wooden lamella design in its shade and texture

40 models of the basic collection and another 1000+ models identical to our hardwood oak floorings

we create the basic collection with a combination of 10 shades of oak, 2 widths of wooden slats and 2 shades of acoustic PET felt



Lamella walls identical to the oak flooring

To match the oak flooring, it is possible to get a wooden slat wall panel in the same design as the floor

OakAcoustics slat wall panel materials consist of sound-absorbing PET acoustic panel and oak wooden lamellas with sound diffusion function

ABSORBER - sound-absorbing PET felt black or gray

Ecological material produced by recycling PET bottles.
Sturdy, flexible panel with high sound absorption capacity and the possibility of different shades.

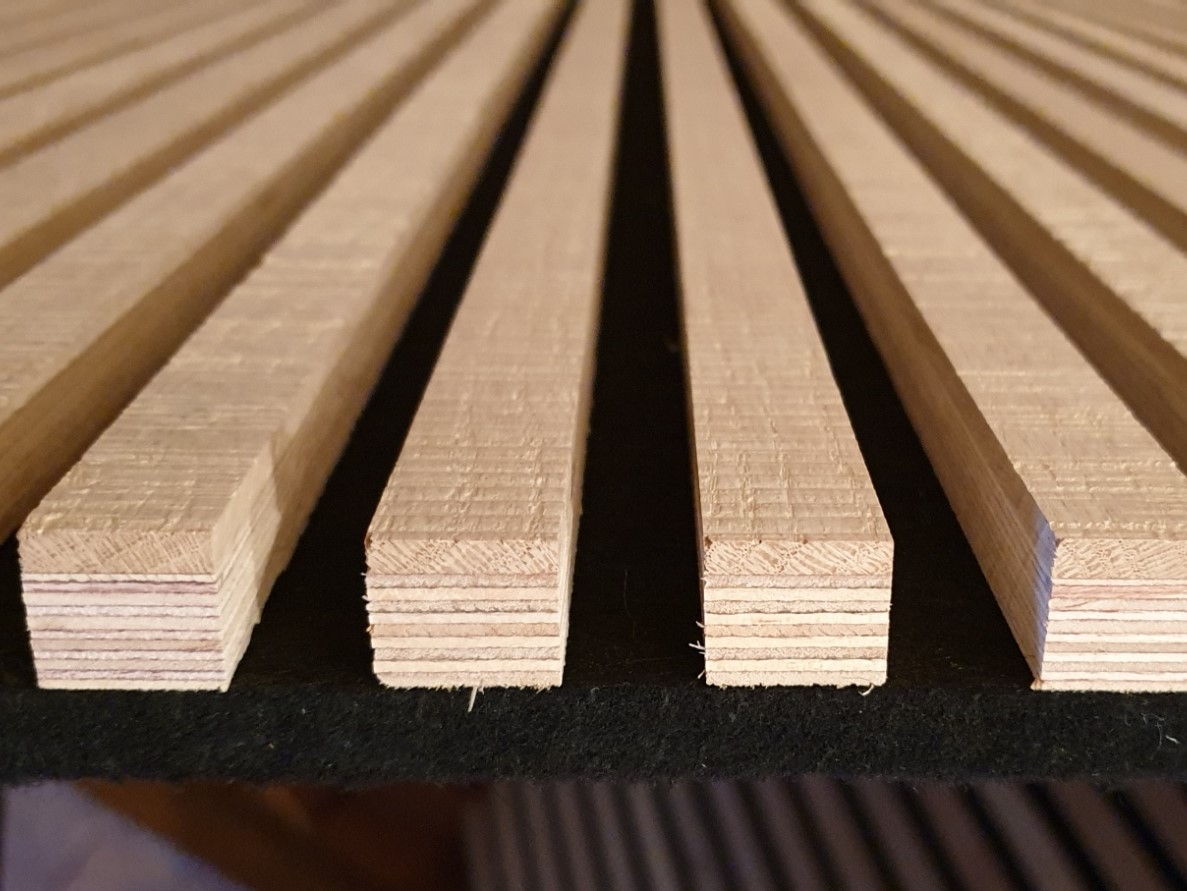

DIFFUSER - oak wooden lamellas



The slats of solid oak on birch plywood are functionally arranged with gaps so as to "break" the sound waves and thus weaken the reverberation of the sound in the room

Uncompromising combination of quality solid oak and ecological PET material into one product

CONTEMPORARY SLAT WALL DESIGN
+
ACOUSTIC WITHOUT ECHO

OakAcoustics slat wall panels designed and manufactured in Slovakia (EU)

We supply OakAcoustics lamella panels in 2 dimensions:

• ACOUSTICS

• 610 x 2440mm main dimension

• 305 x 2440mm half size

Total panel thickness 22mm
9mm PET acoustic absorption panel
13mm oak lamella thickness with MDF core

Oak wooden slats XL width 30mm
Oak wooden slats L width 18mm

Gap between the slats 14mm

INSTALATION of OakAcoustics lamella panels

Easy installation is one of the main advantages of the OakAcoustics lamella wall system. The ready-made large-sized panel with mounted wooden slats represents a lot of time saved and allows easy installation according to the design requirements and the level of acoustics achieved.

The method of installation affects the achieved level of room acoustics and sound insulation. If you want a studio level, choose a wooden grate filled with Rockwool, and if the panels are only behind the TV, choose the EASY system.


OVERVIEW OF INSTALLATION OPTIONS:

I. EASY 1-2-3 INSTALLATION for significant improvement of acoustics and addition of contemporary slat wall design into the interior

Method suitable for walls (not ceilings) and installations that does not cover the entire wall and where no panels are mounted above each other. Ideal e.g. behind the TV


  - hanging on our suspension system is easy and quick

II. WALL-MOUNTED INSTALLATION to significantly improve the acoustics of the space, improve sound insulation from the adjacent space and addition of a modern slat wall design into the interior with complete coverage of surfaces and details




1. Gluing directly to the wall

2. Screwing directly into the wall or plasterboard via acoustic felt



IlI. INSTALLATION ON A PREPARED WOODEN GRID for maximum improvement of acoustics up to studio quality, maximum insulation from adjacent spaces and addition of a modern slat wall design into the interior.



1. screwing into the underlying battens with air gap


2. screwing into the underlying battens with gaps filled with mineral wool e.g. Rockwool

If you are looking to achieve the Class A sound absorption choose screwing into the underlying battens with gaps filled with mineral wool e.g. Rockwool
